Explosive-proof End Seal Box JHE-GET

Explosive-proof End Seal Box JHE-GET

Introduction:

The JHE‑GET explosive‑proof end seal with light is suitable for the sealing of the tail end of self‑regulating trace heating cables and constant power wattage heating cables. It is installed outside the pipeline and inside the insulation layer. The JHE‑GET explosive‑proof end seal with light is suitable for hazardous locations (Zone 1 and Zone 2).

Tools required:

Screwdriver, cutting pliers, special tool knives

Electric data:

Rated voltage: 220V/380V

Rated current: 40A

Approvals mark:


Protection grade: IP66/67

Installation accessories:

  • Fiberglass tape(PET‑GAT)

  • Insulating tape

  • Plastic binding tape

  • Stainless steel clamps (PET‑SST/B)

  • Stainless steel buckles(PET‑SST/B1)

  • Box internals

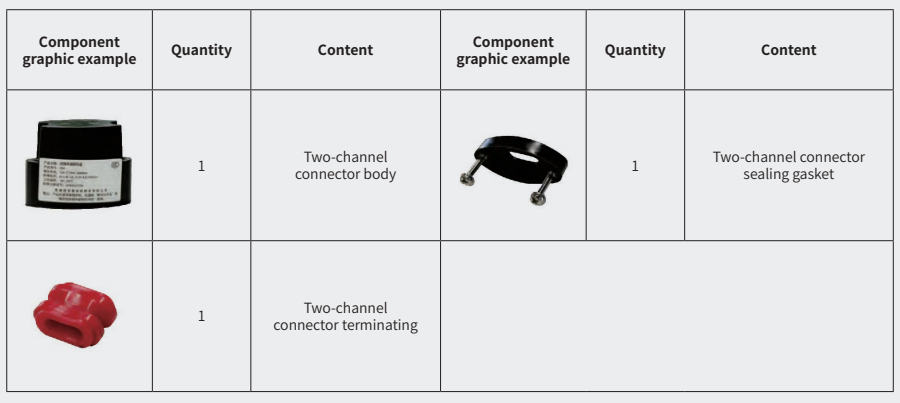

Box internals


ModelDescriptionApplication
JHS-GETExplosive-proof End Seal Box JHT-GETRefer to the design document.
JHT-GETExplosive-proof End Seal Box JHS-GETRefer to the design document.
JHE-GETExplosive-proof End Seal Box JHE-GETRefer to the design document.

The above three junction boxes do not contain connecting accessories and other kits. For the relevant contents of junction box, refer to the design document. If needed, please order it separately, as it depends on the specific model of the trace heating cable used. Please consult local Protrace technicians for confirmation.
