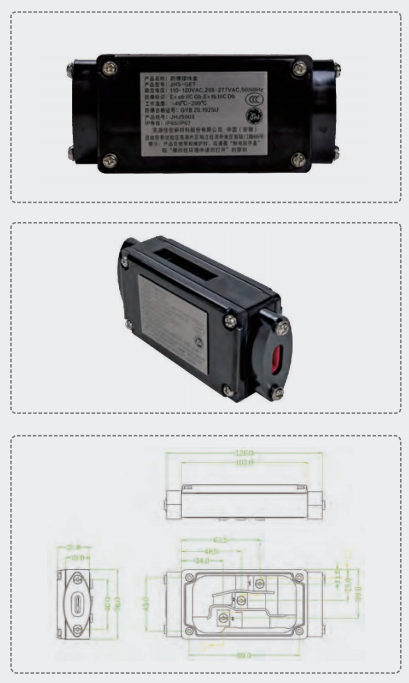

Explosive-proof Splice connection Box JHS-GET

Introduction:

The JHS‑GET explosive‑proof splice box is suitable for the two‑way connection of self‑regulating trace heating cables and constant power wattage heating cables. It is installed outside the pipeline and inside the insulation layer.

JHS‑GET explosive‑proof three‑way junction box is suitable for hazardous locations (Zone 1 and Zone 2).

Required tools:

Tools required: Wire cutter, pliers, screwdriver, and special utility knife.

Electric data:

Rated voltage: 220V/380V

Rated current: 40A

Approvals mark:

Protection grade: IP66/67

Installation accessories:

• Fiberglass tape(PET‑GAT)

• Insulating tape

• Plastic binding tape

• Stainless steel clamps(PET‑SST/B)

• Stainless steel buckles(PET‑SST/B1)

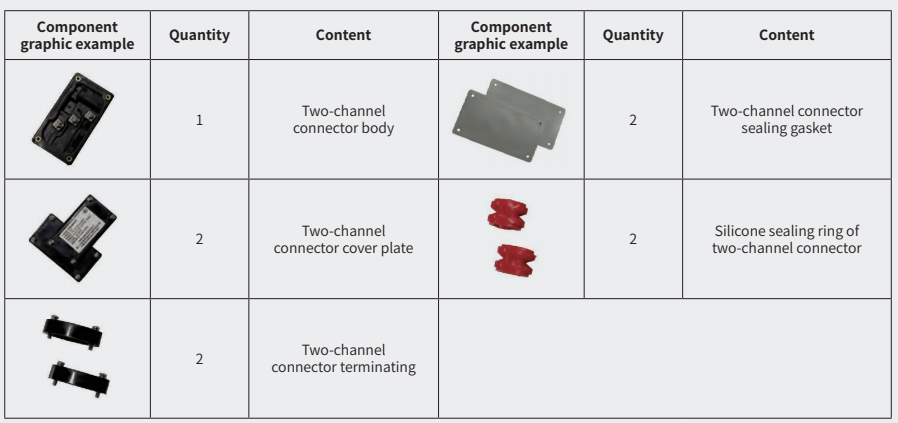

Box internals:
